VK-1
Vertical Double Disc Surface Grinding Machine for Small and Thin Components
Space-saving and low-cost Vertical Double Disc Grinder specialized for small and thin components
Main Specifications
| Machine Dimensions | 1,100 (D) x 600 (W) x 1,475 (H) mm φ150mm CBN/diamond wheels |
|---|---|
| Machine Weight | Approx. 1,000kg |
| GW Drive Motor | AC servomotor 1.0kW x 2 |
| Grinding Method | Rotary carrier / carrier oscillation |
| Typical Workpiece | Small and thin components with OD less thanφ10mm and minimum thickness 0.4mm |
- This is NISSEI’s new product focused on saving spaces and costs. It is integrated with a coolant device and enables to start grinding operation immediately on the day of machine delivery.
- AC servomotors are installed for main spindle drive for accurate rotation speed setting.

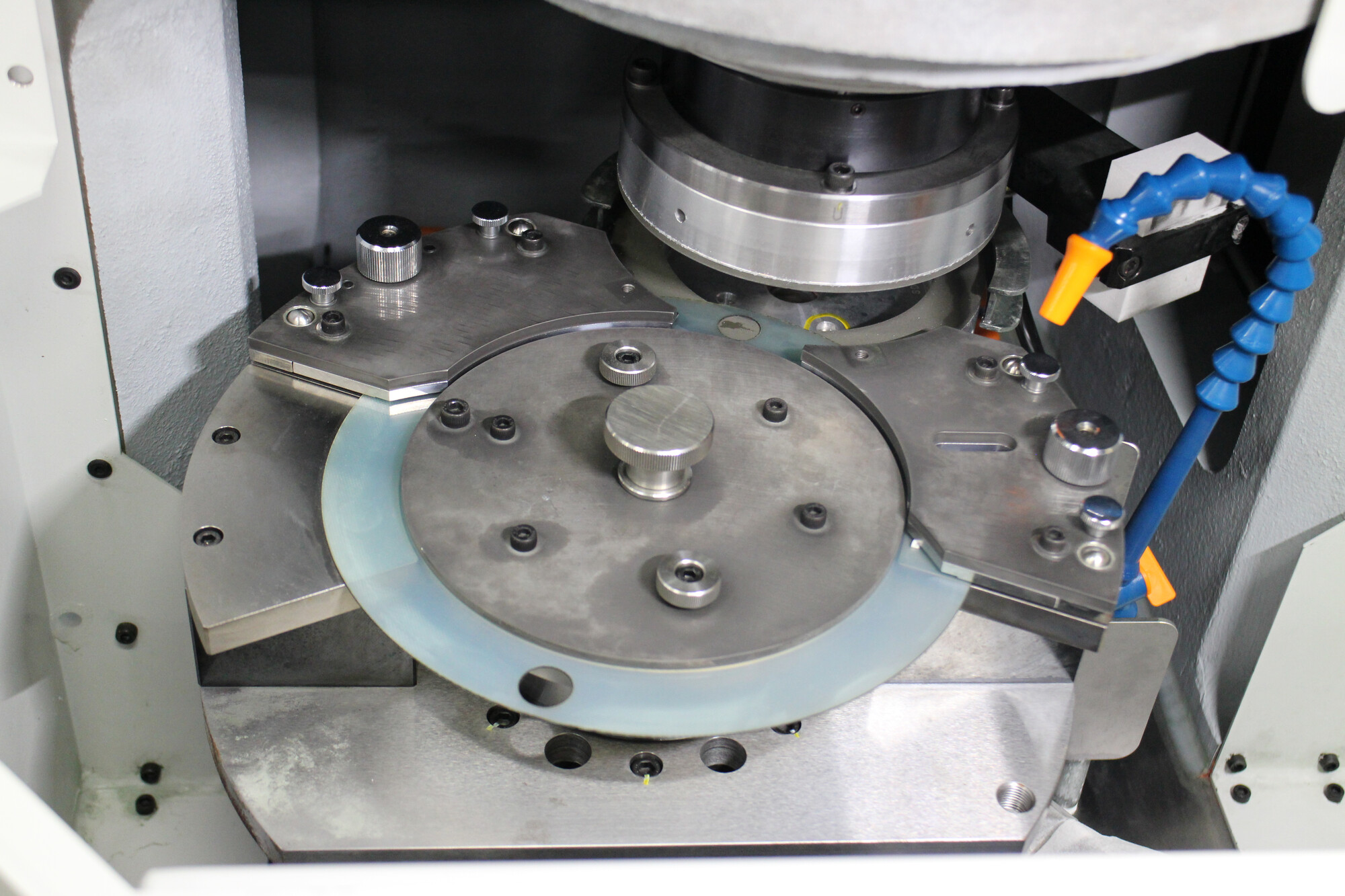

- It is possible to select two types of grinding methods: rotary carrier and carrier oscillation.
- Automatic dressing device is installed as a standard accessory. Automatic sharpening dress with WA stone can be automatically executed.
- AC servomotors are installed for main spindle drive for accurate rotation speed setting.
- It is possible to select two types of grinding methods: rotary carrier and carrier oscillation.
- Automatic dressing device is installed as a standard accessory. Automatic sharpening dress with WA stone can be automatically executed.
- Mitsubishi Electric PLC is adopted for the machine control.

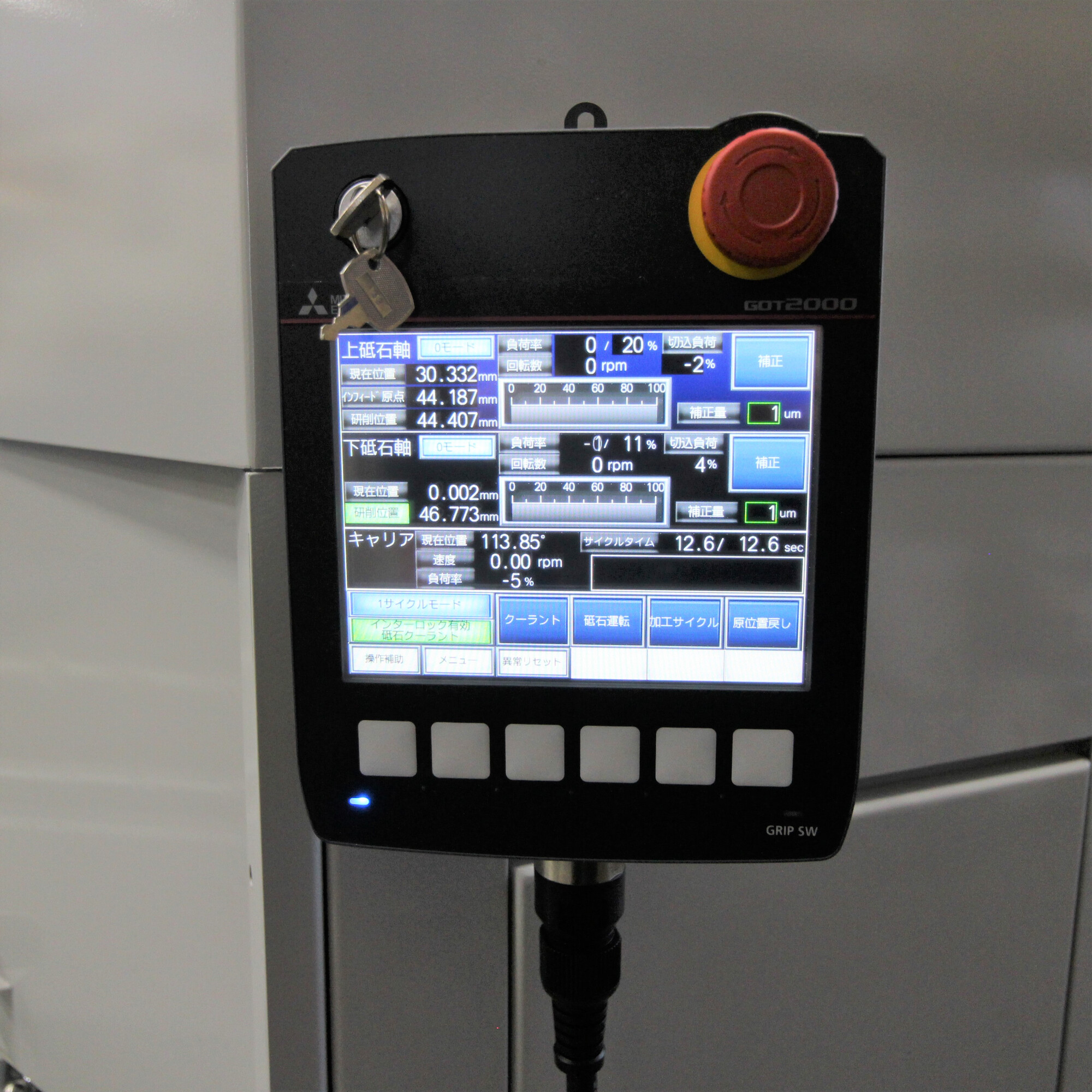

The machine is operated with push buttons located at machine front. Parameter settings and setup operations are performed with a handy HMI.
The machine is operated with push buttons located at machine front. Parameter settings and setup operations are performed with a handy HMI.
